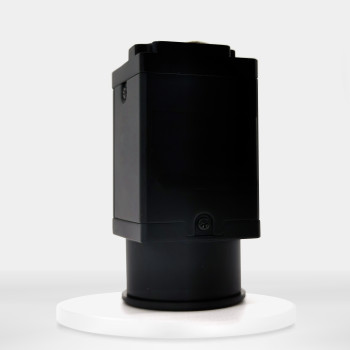

GigE Camera | HC-CU050-30GM 5MP 1/2.5" Mono CMOS GigE Area Scan Camera
- FOB Price
US $145.01 - 50 piece
- group name
- CU Series Area Scan Cameras
- Min Order
- 1 piece
- brand name
- MSTAR Machine Vision System
- model
- HC-CU050-30GM
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- EXW
- Acceptable payment methods
- T/T
- update time
- Wed, 12 Jun 2024 16:18:57 GMT
Paramtents
Sensor type CMOS, rolling shutter
Sensor AR0521
Pixel size 2.2 μm
Sensor size 1/2.5"
Resolution 2592×1944
Max. Frame Rate 24 fps
Mono/Color Mono
Data Interface GigE
Lens mount C-Mount
Dimension 29 mm × 29 mm × 42 mm
Compatibility GigE Vision V1.2, GenICam
Packging & Delivery
- 20cm x10cm x10cm
-
Min Order1 piece
Briefing
AR0521 Image Sensor 5MP 1/2.5" Mono CMOS 24fps GigE Area Scan Camera
Detailed
GigE Camera | HC-CU050-30GM 5MP 1/2.5" Mono CMOS GigE Area Scan Camera
Key Feature
■ Adopts low power consumption design with stable performance.
■ Supports auto and manual adjustment of gain, exposure time, etc.
■ Supports hardware trigger, software trigger, free run, etc.
■ Adopts GigE interface and max. transmission distance of 100 meters without relay.
■ Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specification
|
Model
|
HC-CU050-30GM
|
|
Sensor Type
|
CMOS, Rolling shutter
|
|
Sensor
|
AR0521
|
|
Sensor Size
|
1/2.5"
|
|
Pixel Size
|
2.2μm
|
Resolution | 2592×1944 |
Frame Rate | 24 fps |
Mono/Color | Mono |
Interface | GigE |
Dimension | 29 mm × 29 mm × 42 mm |
Power Supply | 9 ~ 24 VDC, PoE optional |
Conformity | GigE Vision V2.0,GenICam |
Dimension
Download
Accessories
ADS-12FG-12N 12012EPCN
Power Adapter
MV-ACC-01-2101-3m
6-pin P7 Power&I/O Cable
MV-ACC-01-1101-3m
Gigabit Ethernet Cable
Applications
Electronics
Home Appliances
Electrical
