GigE Camera | HC-CS004-11GM 0.4 MP 1/2.9'' Mono CMOS GigE Area Scan Camera

group name: CS Series Area Scan Cameras

Min Order: 1 piece

brand name: MSTAR Machine Vision System

model: HC-CS004-11GM

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: EXW

Acceptable payment methods: T/T

update time: Mon, 20 May 2024 13:52:36 GMT

contact supplier

Paramtents

Sensor type CMOS, global shutter
Sensor IMX287
Pixel size 6.9 μm
Sensor size 1/2.9''
Resolution 720 × 540
Max. Frame Rate 312.9 fps
Mono/Color Mono
Data Interface GigE
Lens mount C-Mount
Dimension 29 mm × 29 mm × 42 mm
Compatibility GigE Vision V1.2, GenICam

Packging & Delivery

20cm x 10cm x 10cm
Min Order1 piece

Briefing

IMX287 Image Sensor 0.4 MP 1/2.9" Mono CMOS 312.9 fps GigE Area Scan Camera

Detailed

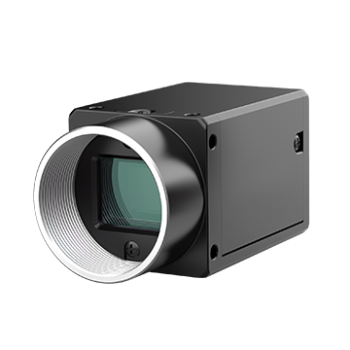

GigE Camera | HC-CS004-11GM 0.4 MP 1/2.9" Mono CMOS GigE Area Scan Camera

HC-CS004-11GM/GC camera adopts Sony® IMX287 sensor to provide high-quality images. It uses GigE interface to transmit non-compressed images in real time, and its max. frame rate can reach 312.9 fps in full resolution.

Specification

Model	Product Model	HC-CS004-11GM
Model	Type	0.4MP Area Scan Camera, GigE, IMX287, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX287
	Pixel size	6.9 μm × 6.9 μm
	Sensor size	1/2.9"
	Resolution	720 × 540
	Max. frame rate	312.9 fps @720 × 540 Mono 8
	Dynamic range	73.6 dB
	SNR	43 dB
	Gain	0 dB to 24 dB
	Exposure time	1 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.2 W@12 VDC
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC

Dimension

Applications

Electronics

Home Appliances

Electrical
