3D Camera | RVC X 3D Stereo Vision Camera
- group name
- 3D Cameras
- Min Order
- 1 piece
- brand name
- MSTAR Machine Vision System
- model
- RVC X Series
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- EXW
- Acceptable payment methods
- T/T
- update time
- Wed, 05 Jan 2022 15:41:47 GMT
Paramtents
Product Dimension（mm） 302 x 115 x 50
Weight（kg） 1.9
Working Distance（mm） 200 - 3000
Field of View（mm） 140 x 80 - 2020 x 1150
Z-direction Accuracy（mm） Standard 0.01 - 0.2
Working Voltage（V） 12
Rated Power（W） 36
Packging & Delivery
-
Min Order1 piece
Briefing
RVC X 3D camera provides point clouds with ultra-high accuracy and fast speed
Detailed

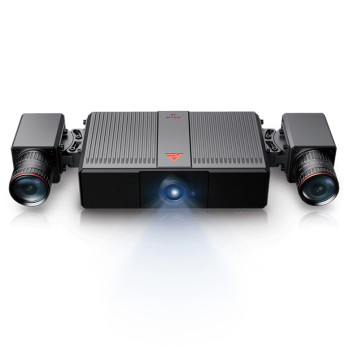

RVC X 3D Camera
Accurate Fast Stable Flexible
Point-cloud Acquisition Time:
1.1s（USB3.0）/1.9s（Ethernet）
Resolution:
Standard 1920x1200px
Z-direction Accuracy（mm):
Standard 0.01 - 0.2 *The highest accuracy can be 0.005
Outstanding Performance
Based on the sophisticated hardware acceleration techniques and point cloud acquisition algorithms, the RVC X 3D camera provides point clouds with ultra-high accuracy and fast speed. In the high-accuracy mode, the typical measurement accuracy is 0.01 mm for a working distance of 1 m, and it can reach a 3D-imaging speed of 5 frames per second. The speed can be further increased to 15 frames per second with reduced accuracy.
|
Main Specifications
|
|
|
Product Dimension（mm）
|
302 x 115 x 50
|
|
Weight（kg）
|
1.9
|
Working Distance（mm） | 200 - 3000 |
Field of View（mm） | 140 x 80 - 2020 x 1150 |
Z-direction Accuracy（mm） | Standard 0.01 - 0.2 *The highest accuracy can be 0.005 |
Working Voltage（V） | 12 |
Rated Power（W） | 36 |
Point-cloud Acquisition Speed（Hz） | Up to 15 |
Resolution | Standard 1920x1200px * Adaptable to a variety of different resolution cameras |
Communication Port | USB 3.0 / Ethernet |
Operating Temperature | 0° - 50° |
Cooling | Passive cooling (No fan) |
Image Types | Grayscale / Color image |
Wide Adaptability
RVC X provides high-quality point clouds for objects with different size, colors and materials.
RVC X: Demonstration of fast-speed 3D imaging
RVC X: Capturing 3D point clouds of a variety of materials
RVC X: 3D point-cloud acquisition of steel strips with various thickness
RVC X: 3D point-cloud acquisition of metallic objects
Color Point-cloud Images
User Friendly
RVC SDK supports Windows and Linux (Debian/Ubuntu) operating systems. It also provides native supports for C++, Python, and C# programming languages. In order to make the SDK easy to use for developers, RVC SDK provides rich sample codes. In addition, RVBUST provides customers with prompt services on technical support and convenient online technical discussion forums.
Flexible Design
The modular structure allows a single RVC X to possess the capabilities of multiple 3D cameras in terms of working distance and field of view, which is achieved through using different numbers of component cameras and various lenses as well as different geometric configurations of system components.
Compact Appearance
RVC X uses advanced miniature components, which give it a compact structure and elegant exterior appearance.
Its dimension of 300mm X 110mm X 50mm is one of the smallest industrial 3D cameras on the market.
