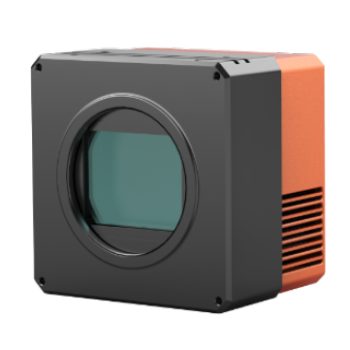

10 GigE Camera | HC-CH1510-10FM 151 MP Mono CMOS 10 GigE Area Scan Camera

group name: CH Series Area Scan Cameras

Min Order: 1 piece

brand name: MSTAR Machine Vision System

model: HC-CH1510-10FM

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: EXW

Acceptable payment methods: T/T

update time: Fri, 15 Oct 2021 16:35:06 GMT

contact supplier

Paramtents

Sensor type CMOS, global shutter
Sensor IMX411
Pixel size 3.76 μm × 3.76 μm
Sensor size 66.7 mm
Resolution 14208 × 10640
Max. Frame Rate 6.2 fps
Mono/Color Mono
Data Interface 10 GigE
Lens mount M72*0.75
Dimension 120 mm × 120 mm × 89 mm
Weight Approx. 2.5 kg
Compatibility GigE Vision V2.0, GenlCam

Packging & Delivery

20cm x10cm x10cm
Min Order1 piece

Briefing

Sony® IMX411 Image Sensor 151 MP Mono CMOS 10 GigE Area Scan Camera

Detailed

10 Gigabit Ethernet – fast, reliable and easy integration

Gigabit Ethernet is the most widely used interface in industrial image processing due to low system costs, cables up to 100 m in length and the GigE Vision standard for easy integration. The ongoing trend toward higher resolution and speed due to ever faster production cycles and new CMOS sensors calls for cameras with increased transmission bandwidth. 10 Gigabit Ethernet allows for transmission of 10 times more image data at 1.1 GB/s while at the same time providing all the advantages of Gigabit Ethernet interfacing without requiring a change to integration software.

Quick and easy integration

More and more PC motherboards support the 10GBase-T interface for direct implementation of 10 GigE cameras. Alternatively, low-priced 10GBase-T standard network cards allow for easy one-cable solutions with data and power (Power over Ethernet) over the same cable. However, Camera Link or CoaXPress always require an additional frame grabber card.

From GigE Vision Standard version 2 onward, changing the application software during the camera integration is a thing of the past, since the software is fully separated and autonomous from the Ethernet interface. Programming using GenICam remains the same, and operation together with GigE Vision cameras is easily achievable.

High bandwidth for cables up to 100 m

The 10 GigE interface provides stronger solutions for applications requiring high bandwidth for long-distance transmission up to 100 m with a single cable, but eliminates the need for specialized components such as frame grabbers.

Under the label 10GBase-T, the Ethernet standard IEEE 802.3an defines the use of twisted pair cables. CAT6 cables are allowed for up to 55 m distance. Greater distances call for CAT6a cables.

For existing CAT5e installations where replacing the present cabling is economically infeasible, transmission rates of 2.5 or 5 Gbit/s are recommended. Transmission speed is defined in standard IEEE 802.3bz of the NBASE-T Alliance.

10 GigE Camera | HC-CH1510-10FM 151 MP Mono CMOS 10 GigE Area Scan Camera

HC-CH1510-10FM camera adopts Sony® IMX411 sensorto provide highquality images. It uses 10 GigE interface to transmit non-compressed data in real time, and its max. frame rate can reach 6.2 fps in full resolution.

Key Feature

■ Supports Binning, LSC Sequencer, FFC and other ISP functions.

■ Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.

■ Adopts TEC technology to reduce sensor temperature and ensure high-quality images under long-time exposure condition.

■ Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Dimension

Specification

Model	Model	HC-CH1510-10FM
Model	Type	151 MP CMOS 10 GigE Area Scan Camera
Camera	Sensor type	CMOS, rolling shutter
	Sensor	IMX411
	Pixel size	3.76 μm × 3.76 μm
	Sensor size	66.7 mm
	Resolution	14208 × 10640
	Max. Frame Rate	6.2 fps
	Dynamic range	78.7 dB
	SNR	45 dB
	Gain	0 dB to 36 dB
	Exposure time	30 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset and Rolling mode
	Mono/Color	Mono
	Pixel format	Mono 8/10/10p/12/12p/16
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
Electrical features	Data Interface	10GigE
	Digital I/O	12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	24 VDC
	Power consumption	Typ. 11.3 W@24 VDC (non-TEC mode) Typ. 49 W@24 VDC (TEC mode)
Mechanical	Lens mount	M72*0.75, optical back focal length 19.55 mm (0.8")
	Dimension	120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5")
	Weight	Approx. 2.5 kg (5.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, FCC, RoHS, KC
