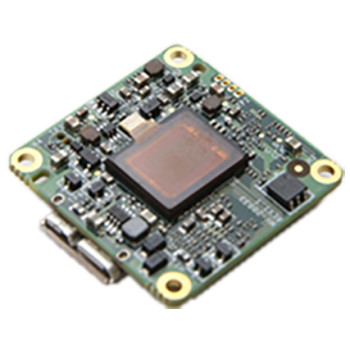

Board Level Camera | HC-CB013-20UC 1.3 MP 1/2" Color CMOS USB3.0 Board Level Camera For Embedded Vision

group name: CB Series Board Level Cameras

Min Order: 1 piece

brand name: MSTAR Machine Vision System

model: HC-CB013-20UM

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: EXW

Acceptable payment methods: T/T

update time: Tue, 12 Oct 2021 14:39:06 GMT

contact supplier

Paramtents

Sensor type CMOS, global shutter
Sensor PYTHON1300
Pixel size 4.8 μm × 4.8 μm
Sensor size 1/2
Resolution 1280 × 1024
Max. Frame Rate 170 fps
Mono/Color Color
Data Interface USB3.0
Lens mount bare board/ S-Mount/ C-Mount
Compatibility USB 3 Vision

Packging & Delivery

20cm x10cm x10cm
Min Order1 piece

Briefing

1.3 MP 1/2" Color CMOS USB3.0 Board Level Industrial Camera For Embedded Vision

Detailed

CB Series Board Level Cameras for Embedded Vision

The CB series cameras were developed to meet the requirements of a wide range of image processing applications: With S- or C-mount or, completely without housing - in a single-board design - it offers the latest technology in a small format.

The CB series board level cameras not only score with its compact design, it also stands out for its excellent price/performance ratio and flexible integration capability.

Ultra-small size, flexible for application

Comparing with general cameras, board-level cameras have a compact and smaller structure by the single-board design. Using USB3.0 interface and one-cable solution, the series have low power consumption, high bandwidth and can be embedded in many micro and small application scenarios.

Support different embedded processing boards for connection

The board-level camera can support access to the current mainstream embedded processing boards: NVIDIA Jetson TX1, TX2, Raspberry Pi, Odroid, etc., with lower power consumption, smaller size, flexible assembly, and can be applied in different embedded scenarios.

Multiple lens interfaces to choose

The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S), which can be flexible according to different application scenarios and different application requirements such as installation space and image quality requirement.

HC-CB013-20UM/UC

HC-CB013-20UM/UC camera adopts OnSemi PYTHON1300 sensor and has high frame rate. With single board design, it is small in size, which can meet different spatial requirements.

Key Features

■ Compact design for flexible installation.

■ Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.

■ Adopts image interpolation algorithm for color camera to have better color correction.

■ Power supply and data transmission via USB3.0 interface.

■ Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.

Available Models

■ Single board mono camera: HC-CB013-20UM-B

■ Single board color camera: HC-CB013-20UC-B

■ C-mount mono camera: HC-CB013-20UM-C

■ C-mount color camera: HC-CB013-20UC-C

■ M12-mount mono camera: HC-CB013-20UM-S

■ M12-mount color camera: HC-CB013-20UC-S

Applicable Industry

Electronic semiconductor, factory automation, logistics, liquor and beverage, medicine packing, etc.

Specifications

Model	Product Model	HC-CB013-20UC
Model	Type	1.3 MP 1/2" CMOS USB3.0 Board Level Camera
Camera	Sensor Type	CMOS, global shutter
	Sensor	PYTHON1300
	Pixel Size	4.8μm × 4.8μm
	Sensor Size	1/2"
	Resolution	1280 × 1024
	Max. Frame Rate	170 fps
	Dynamic Range	59.6 dB
	SNR	39.8 dB
	Gain	0dB to 15dB
	Exposure Time	65 μs to 10 sec
	Shutter Mode	Off/ Once/ Continuous exposure mode
	Mono/Color	Color
	Pixel Format	Mono8/10/12, Bayer RG 8/10/10p/12/12p YUV 422 Packed, YUV422_YUYV_Packed, RGB 8
	Binning	Not support
	Decimation	Not support
	Reverse Image	Supports horizontal and vertical reverse image output
Electrical features	Data Interface	USB3.0
	Digital I/O	Bi-directional non-isolated I/O x 2 (Line 1, Line 2)
	Power Supply	USB3.0 power supply
	Power Consumption	< 2.28W@5VDC
Mechanical	Lens mount	Single board camera: none C-mount camera: C-mount M12-mount camera: M12-mount
	Dimension	Single board camera: 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") C-mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") M12-mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
	Weight	Single board camera: Approx. 10 g (0.02 lb.) C-mount camera: Approx. 30 g (0.07 lb.) M12-mount camera: Approx. 30 g (0.07 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, without condensation
General	Client Software	MVS or third-party software with USB3 Vision Protocol
	Operating System	32/64bits Windows XP/7/10, 32/64bits Linux
	Compatibility	USB3 Vision, GenICam
	Certification	CE, FCC, RoHS, KC

Drawings

Single board camera

S-Mount Camera

C-Mount Camera
